Portable 532 Raman Spectrometer 200cm-1 4000cm-1 res. 8cm-1 with Customized Support OEM

Name: Portable 532 Raman Spectrometer 200cm1 4000cm1 res 8cm1 with Customized Support OEM
Brand: YIXIST
Price: 10 USD

Quality Portable 532 Raman Spectrometer 200cm-1 4000cm-1 res. 8cm-1 with Customized Support OEM wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YOA-8401-532-02

Size : 342*180*89mm

Wavelength Range : 200cm-1 - 4000cm-1

Model : YOA-8401-532-02

Dimension : 342*180*89mm

Resolution : < 8cm-1

Fiber connector : SMA905

Detector : Hamamatsu S11510 Area array back-thinned CCD

Signal to noise ratio : 800:1 full range

Operating Temperature : 0℃ -45℃ (25℃ recommend)

Integration time : 0.5ms - 10s

Laser Power : 0-500mW adjustable

Price : $10,324.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

Portable 532 Raman Spectrometer 200cm-1 4000cm-1 res. 8cm-1 with Customized Support OEM

PRODUCT OVERVIEW

YOA-8401-532 series portable Raman spectrometer with spectral range up to 4000cm-1 and spectral resolution up to 10cm-1 (equipped with 25μm slit). Depending on the detector specifications, two versions of this series of Raman spectrometers are available, YRS-532-01 general-purpose and YRS-532-02 high-sensitivity, which can be selected according to the strength of the Raman spectral signal of the test sample. The instrument is compact and offers a secondary development kit, which is very convenient for laboratory scientific research and industrial measurements.

Application

Food safety Biopharmaceuticals Drug detection Environmental monitoring Other applications where Raman is required.

PRODUCT SPECIFICATIONS

Model	YOA-8401-532-02
Dimension	34218089mm
Weight	2.45Kg
Range	200cm-1 - 4000cm-1
Laser	532nm±0.5nm Line width<0.1nm
Resolution	< 8cm-1
Fiber connector	SMA905
Laser Power	0-500mW adjustable
Laser output port	FC
Probe focal length	7.5mm
Detector	Hamamatsu S11510 Area array back-thinned CCD
Signal to noise ratio	800:1 full range
Signal input port	SMA905
Integration time	0.5ms - 10s
Power adapter	100-240v AC 50/60Hz
Humidity	5%-80%
Operating temperature	0℃ -45℃ (25℃ recommend)
Signal output	USB2.0，12Mbps

TYPICAL TESTING

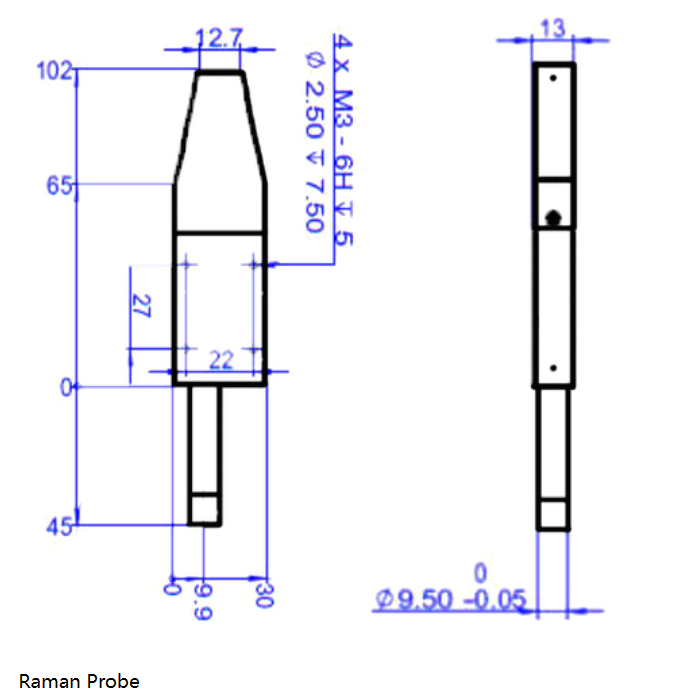

DIMENSION

RELATED ACCESSORIES

Quartz Cuvette

Cuvette Holder

Quartz Cuvette

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

^{YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.}

^{"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.}
