ODM Supported YIXIST XOA-8407-1 CMOS Beam Analyzers Cameras for Laser Systems 350-1200 nm

Name: ODM Supported YIXIST XOA84071 CMOS Beam Analyzers Cameras for Laser Systems 3501200 nm
Brand: YIXIST
Price: 5 USD

Quality ODM Supported YIXIST XOA-8407-1 CMOS Beam Analyzers Cameras for Laser Systems 350-1200 nm wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : XOA-8407-1

Model : XOA-8407-1

Wavelength range : 350-1200 nm

Sensor Type : CMOS

Minimum measurable beam (um) : 55

Max. measurable power* (W) : 1

Number of frames : 60

Price : $5,162.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

ODM Supported YIXIST XOA-8407-1 CMOS Beam Analyzers Cameras for Laser Systems 350-1200 nm

PRODUCT OVERVIEW

Beam analyzers, also known as beam profilers, are used to measure the intensity distribution of a laser beam over a cross-section, not only to measure the beam profile but also to obtain a detailed distribution of the light intensity. The XOA-8407 is a series of CMOS camera-based beam analyzers that can measure wavelengths in the range of 350-1200 nm. Three different sensor sizes are available, 1/1.2", 1", and 1/2.5", with a maximum power of 1 W (when fitted with a 0.1% attenuator). The laser beam size, roundness, energy distribution, center of mass, and pointing stability can be accurately measured. The selected professional industrial camera ensures the stability and reliability of the product, and the humanized software design enhances the human-machine interaction experience.

Feature

A variety of sensor sizes to choose from Multiple attenuators for flexible matching Compact size, easy to carry Professional software, easy to operate

Application

Measurement of laser beam profile, circularity, center of mass, energy distribution and pointing stability.

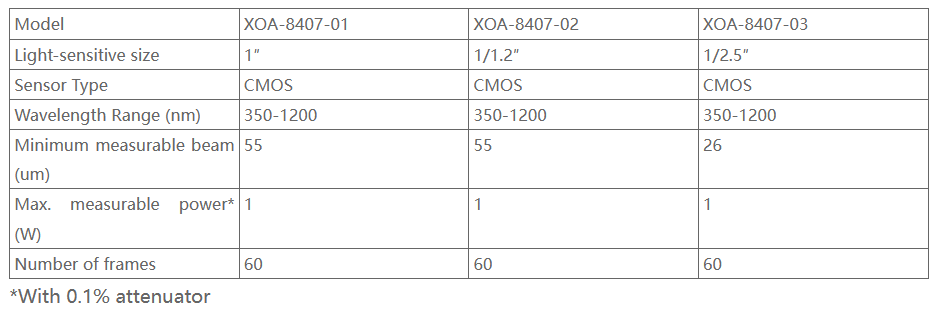

PRODUCT SPECIFICATIONS

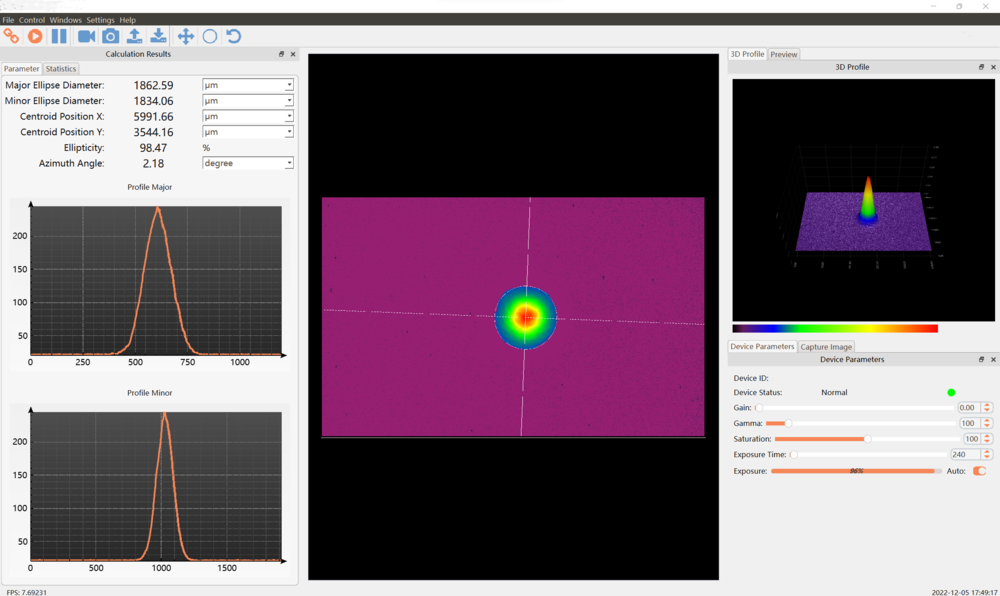

TYPICAL TESTING

RELATED ACCESSORIES

Fiber

Light Source

Sample Holder

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.

Currently we're working with hunderds of well known universities and research institutions in China and are actively involved in offline events as Education Seminars and Exhibitions.
