Accurate YSM-8101-01-02 UV VIS Laser Measurement Kit for Center Wavelength and Power

Name: Accurate YSM81010102 UV VIS Laser Measurement Kit for Center Wavelength and Power
Brand: YIXIST
Price: 3 USD

Quality Accurate YSM-8101-01-02 UV VIS Laser Measurement Kit for Center Wavelength and Power wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Wavelength Range : Customizable

Model : YSM-8101-01-02

Wavelength range : 400-1100nm

Optical Resolution : ~1nm

Optical power meter : YPM-8202-01-L 380-1100nm

Integrating sphere : Diameter 150mm

Optical fiber : 600um 1.5m

Software : Spectral power dedicated software

Price : $3,334.00/packs >=1 packs

MOQ : 1 unit

Contact Now

Accurate YSM-8101-01-02 UV VIS Laser Measurement Kit for Center Wavelength and Power

PRODUCT OVERVIEW

The system is mainly used to measure the center wavelength, half-height width and power of laser and other important performance indicators of laser. The device is modularly designed and mainly consists of a spectrometer, an optical power meter and an integrating sphere, and uses professional measurement software to measure the center wavelength, half-height width and power of the laser simultaneously. It is suitable for measuring luminescent devices such as laser diodes, laser diode assemblies, and dispersive monochromatic light sources, and can be customized for users for production lines. The measurement wavelength range is 200-1100nm, resolution 0.1-1nm, power range: 100nW-10W. Before the equipment leaves the factory, the integral sphere and power meter detector of the system are calibrated as a whole to ensure the reliability and accuracy of the system measurement. Therefore, the equipment cannot be disassembled at will during use, otherwise it needs to be recalibrated.

SPECIFICATION

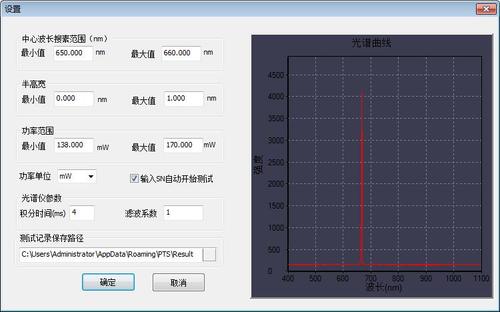

TYPICAL TESTING

RELATED ACCESSORIES

Optical Power Meter

Spectrometer

Integrating sphere

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.

Currently we're working with hunderds of well known universities and research institutions in China and are actively involved in offline events as Education Seminars and Exhibitions.
